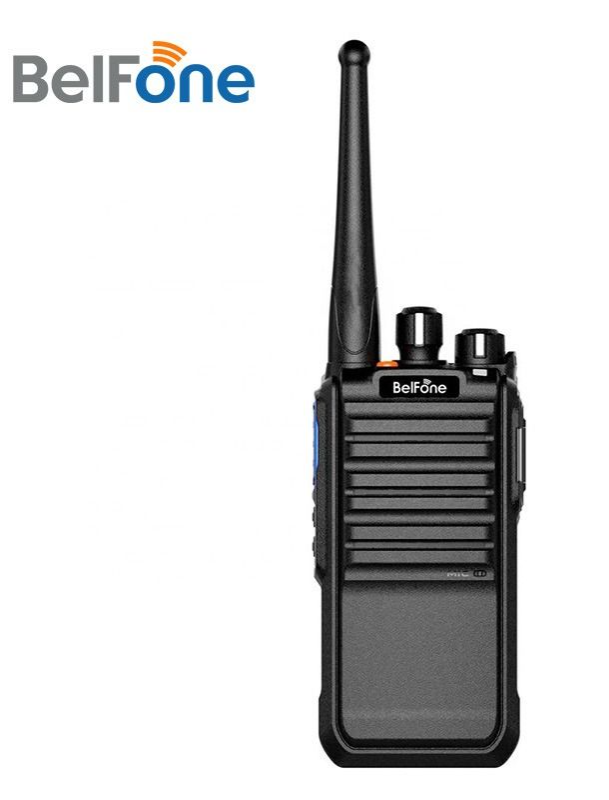

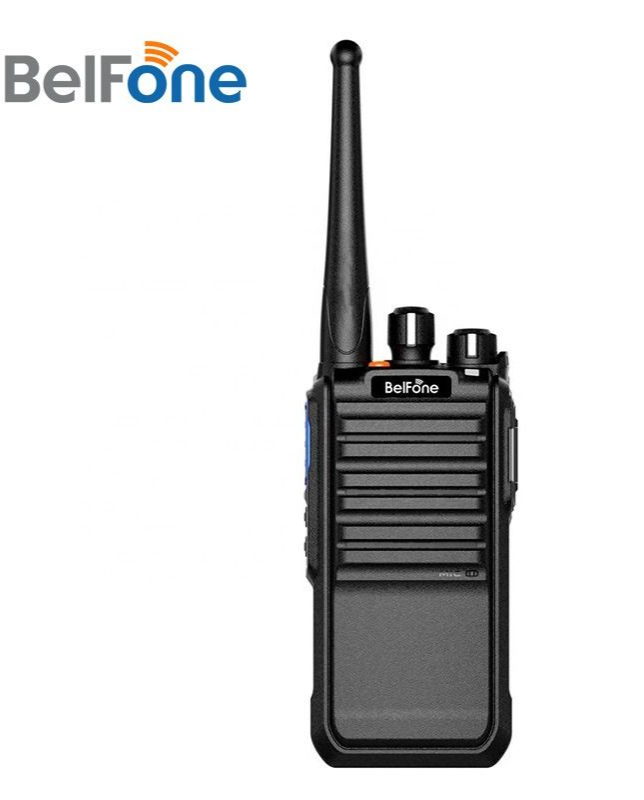

BELFONE BF-TD516 DMR UHF TRANSCEIVER
Category: Digital
Specifications
GENERAL
Frequency Range : UHF:350-390MHz/400-480MHz/450-520MHz
Channel Capacity : 32
Zones : 2
Channel Spacing : 12.5KHz
Working Voltage : DC 7.4V (±20%)
Frequency Stability : ±1.5ppm
Antenna Impedance : 50Ω
Battery Average Working Time (5/5/90) : Digital 18 hours; Analog 14 hours
Weight : 259g (including battery pack)
Battery Capacity : Real 1800 mAh (Li-polymer Battery)
Dimensions : 35(L)x59.7(W)x114(H) mm
TRANSMITTER
Power Output : 5W
4FSK Modulation : 12.5KHz data only: 7K60FXD
12.5KHz data and voice: 7K60FXE
FM Modulation : 12.5KHz data only: 7K60FXD
Modulation Limitation : +/-2.5KHz @ 12.5KHz
+/-5KHz @ 5KHz
FM Noise : -40dB
Spurious Emission : -36 dBms1GHz
-30 dBm≥1GHz
Adjacent Channel Power : ≤-60dB
Frequency Response : +1/-3 dB
Audio Distortion : <3%
Vocoder : AMBE+2M
RECEIVER
Digital Sensitivity DMR : 5% BER: 0.25
Analog Sensitivity : 0.25 uV (12 dB SINAD)
Intermodulation : 60dB
Adjacent Channel Selectivity : 60 dB
Spurious Suppression : 60 dB
FM Noise : -40dB
Frequency Response : +1/-3 dB
Audio Power : 1.5W
Audio Distortion : 3% (typical)
Conduction Radiation : -57dBm
Environmental Specifications
Working Temperature : -20 C-+60 С
Storage Temperature : -30 C-+85 C
Water Proo er Proof : IP54
SKU
BLACK , WATERPROOF
Details
BF-TD516 is a DMR entry level portable designed for traditional analog users who want to experience digital communications while still keep to their analog budgets. With a loud and crystal clear audio, a longer battery life, and of course a higher spectrum efficiency delivered by a 12.5KHz channel spacing, BF-TD516 gives you a whole package of basic digital features and a smooth transition. BF-TD516 is an ideal analog replacement for small businesses, such as hotels, restaurants, supermarkets, etc.
- Analog/Digital Dual Modes--Smooth Transition
- FEC& AMBE+2™ Vocoder--Clear Audio
- Longer Battery Life--More Durability
- Compatible with Motorola Analog Audio Accessories Kit--Better Flexibility
